3 5 7 Ply Carton Folder Gluer Machine Corrugated Box Semi Auto

Name: 3 5 7 Ply Carton Folder Gluer Machine Corrugated Box Semi Auto
Brand: SOOME
Price: 1 USD

Quality 3 5 7 Ply Carton Folder Gluer Machine Corrugated Box Semi Auto for sale

Brand Name : SOOME

Model Number : SMZX-BZD-2800

Certification : CE Certification

Place of Origin : Hebei Province China

MOQ : 1 set

Price : negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100 per/mounth

Delivery Time : 24 after depoist

Packaging Details : wooden case and filling with plastic film

speed : 60m/min

Feeding way : semiautomatic

Warranty : 1 Year

Weight : 2150 kg

Condition : New

Packaging type : Cartons,Case,Film

Max. Size (L+W) x 2 : 2800mm

Driven type : Electric

After-sales service provided : Online support

Machine size : 3800*1900*1700 mm

Contact Now

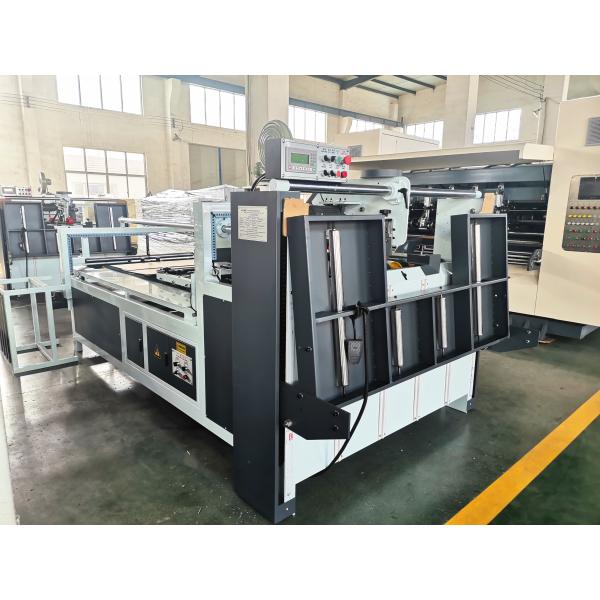

SM-2800 Type Semi-Auto Folder Gluing Machine Used For Corrugated Carton

Main Structure:

The semi-automatic glue box machine is a new type of environmental protection equipment for carton production in recent years. It is mainly used for carton bonding and abandoning the traditional copper nail binding method, which improves production efficiency and good product quality. Main frame structure: frame, lifting workbench, front section conveying device, front section correction device, middle section conveying device, middle section pressing device, finished side output device.

Technical parameters:

SMZX-BZD-2800
Max. Size (L+W) x 2	2600mm/2800mm
Min. Size (L+W) x 2	340mm
Max. Size (W+H) x 2	1515mm
Min. Size (W+H) x 2	260mm
Feeding pile height	1000mm
Motor power	4kw
Machine length	5300mm
Machine weight	2150kg
Machine speed	0-75 m/min

Use and Caracteristics:

1. Simple and reliable operating system.
2. Novel and smooth overall design.
3. Fast size conversion.
4. Can automatically count, package settings.
5. The width of the carton plus the minimum can be about 240mm.
